JBL BAR 1000

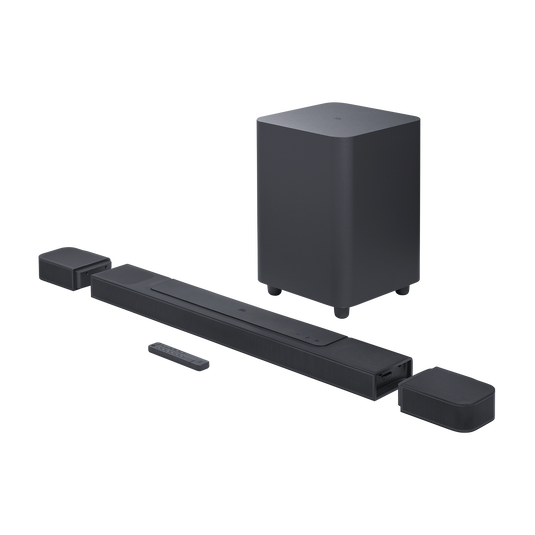

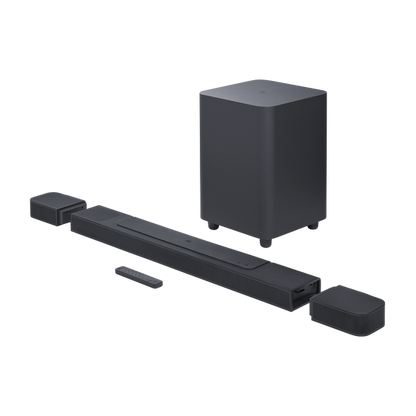

Experience movies, music and games with sound that puts you right in the middle of the action, thanks to 880W of total output power and thunderous bass from the 10" subwoofer. The JBL Bar 1000 has MultiBeam™ and four up-firing drivers—two in the bar and two in the detachable battery-powered surround speakers—to envelop you in a sphere of Dolby Atmos® and DTS:X 3D surround sound with a wide, spacious soundstage with no need to draw extra cables. You'll never miss a word with our PureVoice technology, which makes sure the dialogue is clear even when other sounds are at their loudest. When you're ready for some music, stream your favorite playlist from AirPlay, Alexa MRM, and Chromecast built-in™ and it'll feel like the band is right there. Have a great night out without leaving your living room.

Model BAR 1000

Sound system7.1.4 channel

Power supply100 - 240V AC, ~ 50/60Hz

Networked standby power< 2.0W

Operating temperature0°C - 45°C

Total speaker power output (Max @THD 1%)880W

Soundbar output power (Max @THD 1%)440W

Surround speaker output power (Max @THD 1%)2x 70W

Subwoofer output power (Max. @THD 1%)300 W

Soundbar transducer5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers

Surround speaker transducer0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range driv

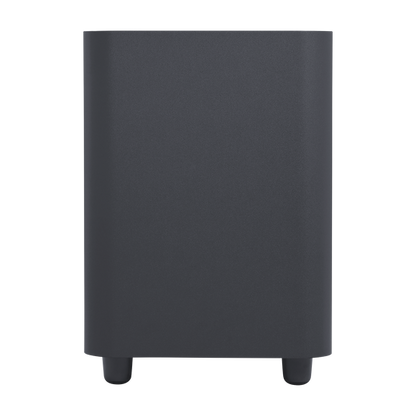

Subwoofer transducer10” (260mm)

Frequency response33Hz - 20kHz (-6

Audio inputs1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

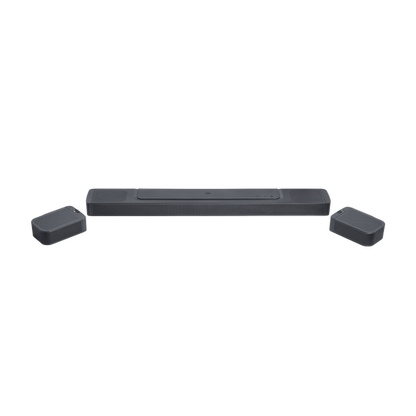

Total soundbar dimensions (W x H x D)1194 x 56 x 125mm / 47" x 2.2" x 4.9"

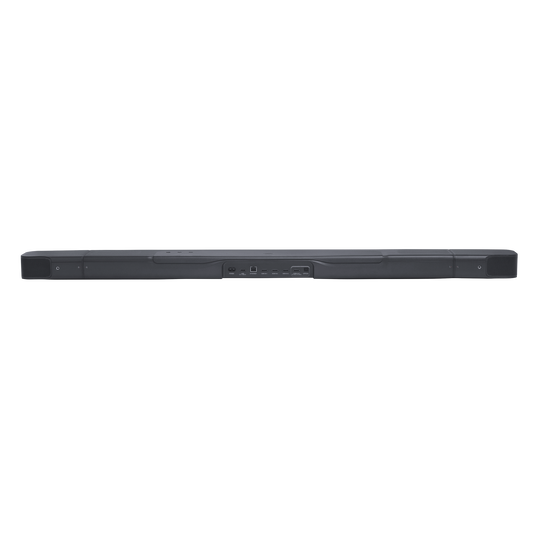

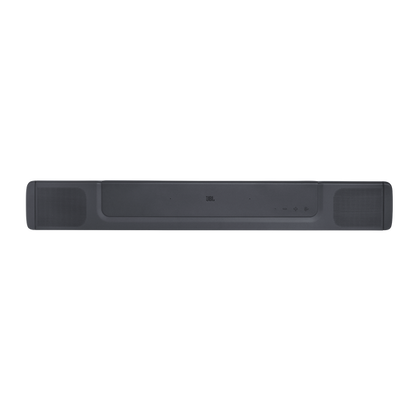

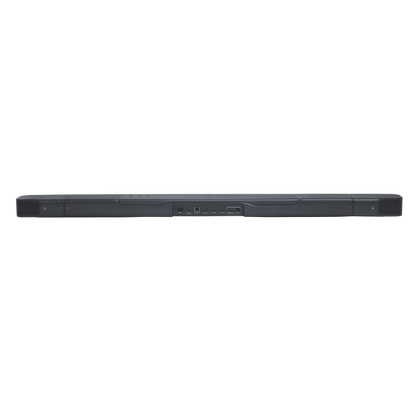

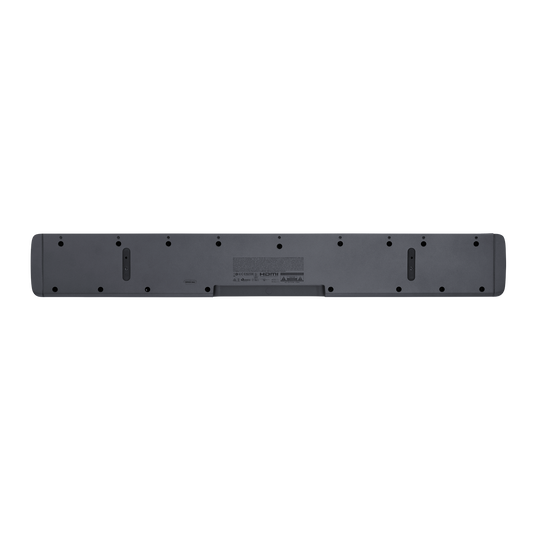

Main soundbar dimensions (W x H x D)884 x 56 x 125 mm / 34.8" x 2.2" x 4.9"

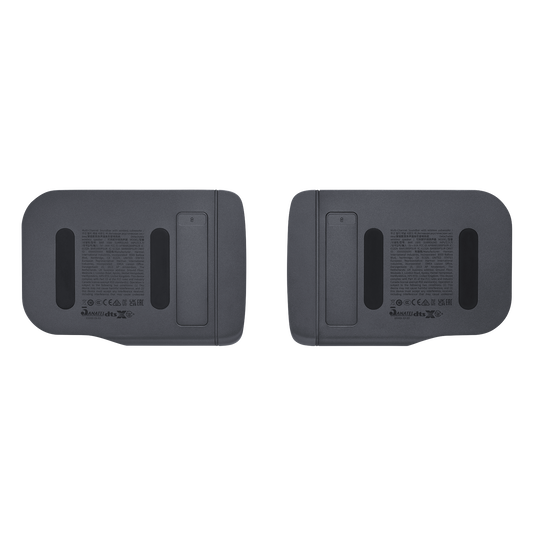

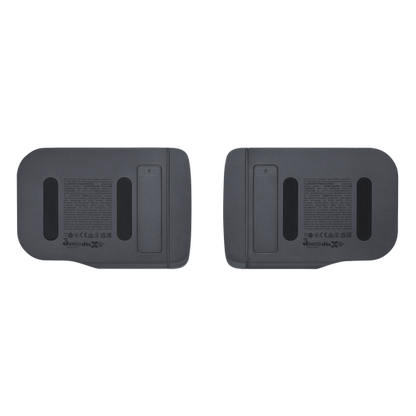

Detachable surround speaker dimensions (each) (W x H x D)155 x 56 x 125 mm / 6.1" x 2.2" x 4.9"

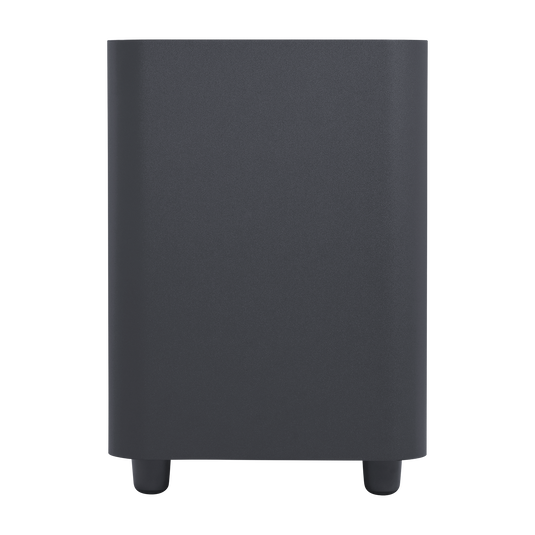

Subwoofer dimensions (W x H x D)305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight3.7 kg / 8.2 lbs

Detachable surround speaker weight (each)1.4kg / 3.1 lbs

Subwoofer weight10 kg / 22 lbs

Packaging dimensions (W x H x D)1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"

Packaging Weight19.4 kg / 42.7 lbs

USB portType A

USB rating5V DC, 0.5A

Supporting file formatMP3

MP3 codecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate16 - 48 kHz

MP3 bitrate80 - 320 kpbs

Bluetooth version5.0

Bluetooth profileA2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range2400MHz – 2483.5MHz

Bluetooth transmitter power<15dBm (EIRP)

Wi-Fi networkIEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power< 20dBm (EIRP)

5G Wi-Fi transmitter frequency range5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range2406 - 2474MHz

2.4G wireless power＜10dBm (EIRP）

Lithium battery3.635V, 3283mAh

HDMI video input 3

HDMI video output 1 (with Enhanced Audio Return Channel, eARC)

HDMI HDCP version2.3

HDR pass throughHDR10, Dolby Vision

• 1x Main soundbar
• 2x Detachable wireless surround speakers
• 1x Wireless subwoofer

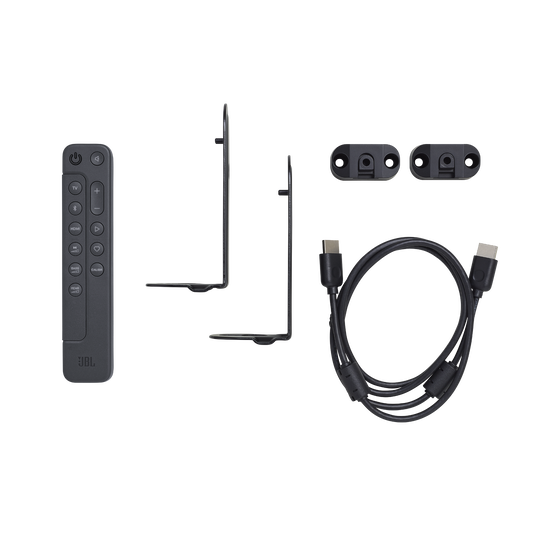

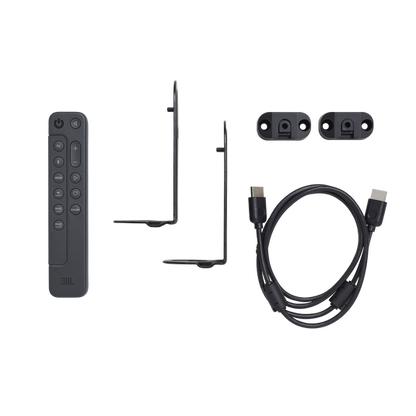

• Remote control with 2 x batteries
• Power cords (up to 8pcs depending on region SKUs)
• 1 x HDMI cable
• 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
• 4 x Side caps
• Quick start guide
• Safety instruction and Warranty card
• Wall mount template
