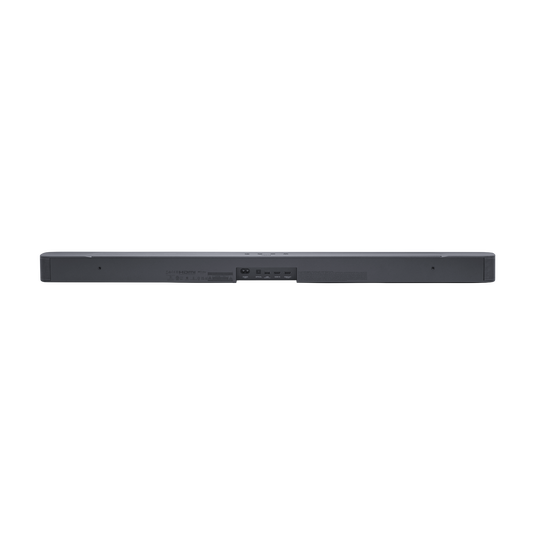

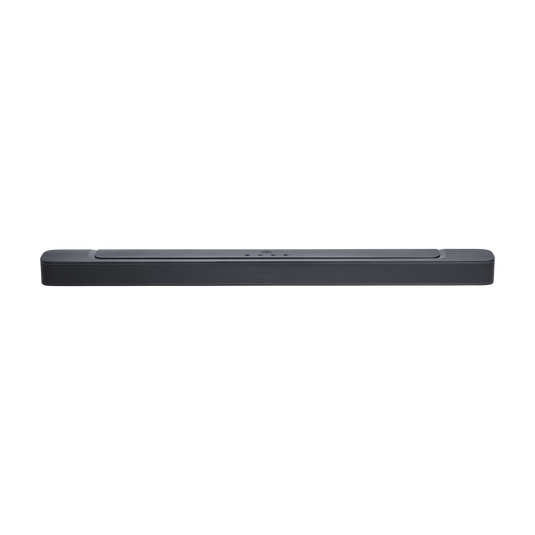

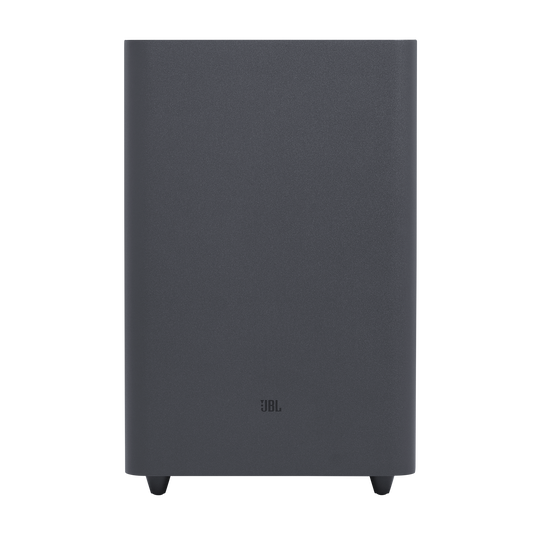

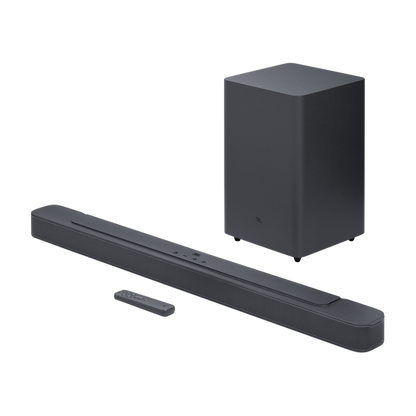

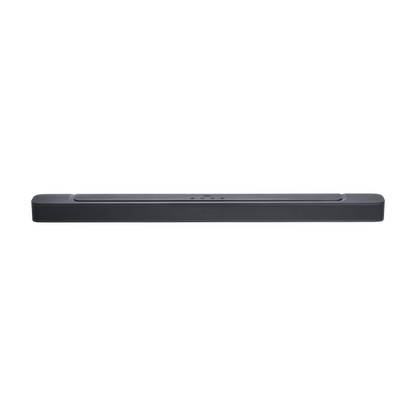

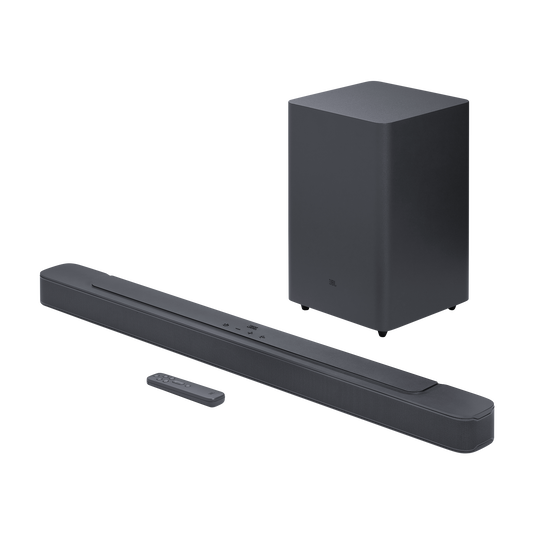

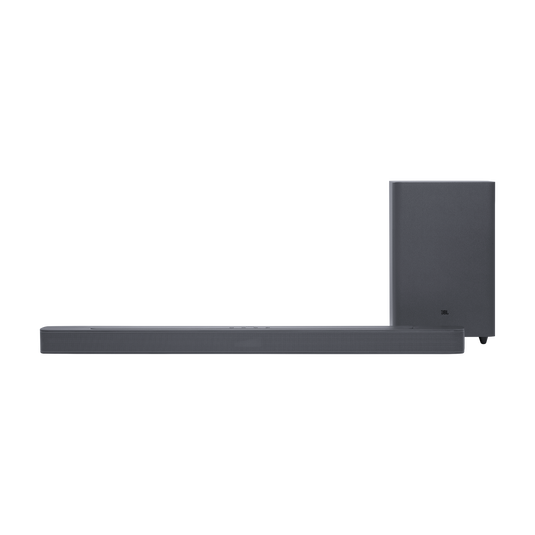

JBL Bar 2.1 Deep Bass (MK2)
JBL Bar 2.1 Deep Bass (MK2)

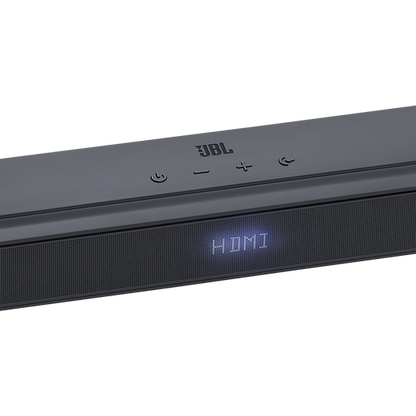

Immerse your living room in sound. The JBL Bar 2.1 Deep Bass soundbar turns your living room into a cinema or stadium. JBL Bar 2.1 Deep Bass might be compact, but it delivers 300 Watts of incredible JBL signature sound. Connect to your TV with just one optical or HDMI cable or stream music from your phone with built-in Bluetooth. Dolby Digital and JBL Surround Sound bring a real cinematic experience to your home, making anything you watch or listen to, more epic, more thrilling and more powerful.
Power supply 100 - 240V AC, ~ 50/60Hz
Operating temperature 0°C - 45°C
Total speaker power output (Max. @THD 1%) 300W
Output power (Max. @THD 1%)2 x 50W (Soundbar), 200W (Subwoofer)

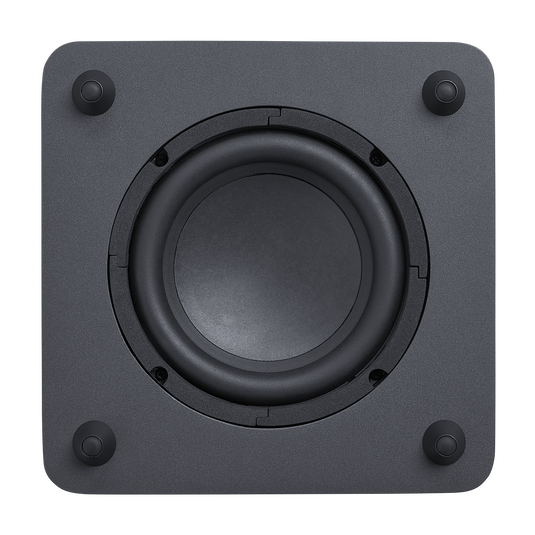

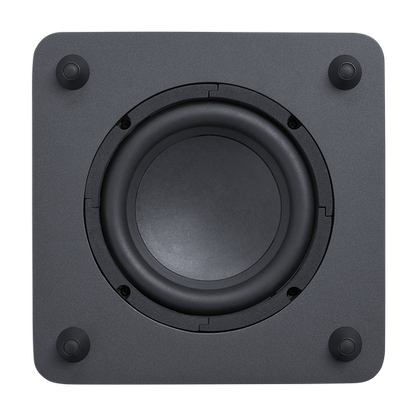

Transducer4 x race-track driv-ers + 2 x 1” tweeter (Soundbar), 6.5” (Subwoofer)
Soundbar and Subwoofer standby power<0.5W
Frequency response 40Hz - 20KHz
Audio inputs1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

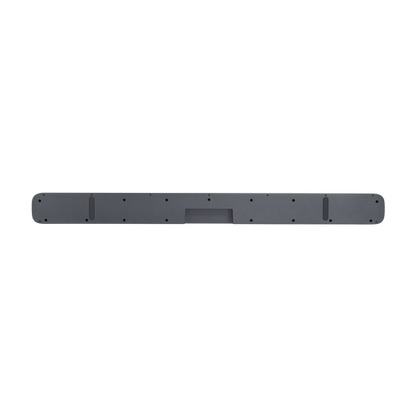

Dimensions (W x H x D)965 x 56 x 85 (mm) / 38” x 2.2” x 3.4” (Soundbar)

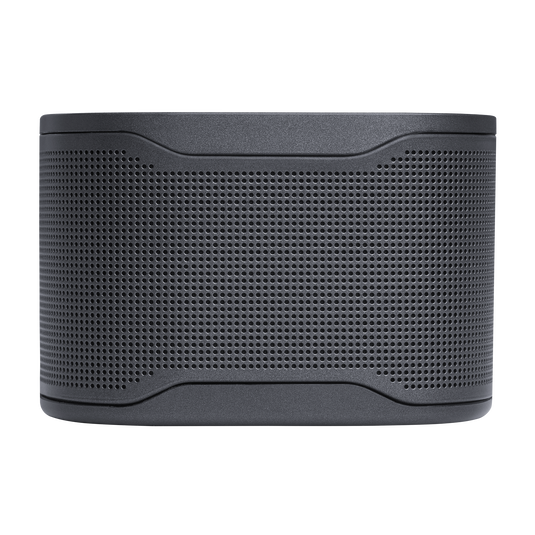

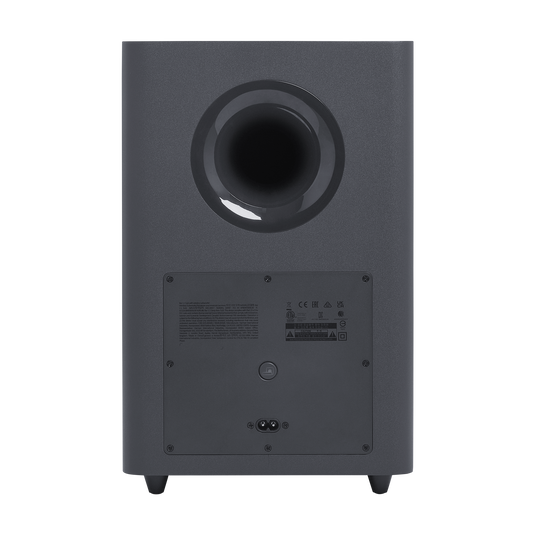

Dimensions (W x H x D)240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)
Weight2.14 kg (Soundbar)
Weight5.61 kg (Subwoofer)
Packaging dimensions (W x H x D)1045 x 310 x 405mm
Packaging weight (Gross weight)10.32kg
USB port Type A
USB rating 5V DC/ 0.5A
Supporting file format mp3, wav
MP3 Codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate 16KHz - 48 KHz
MP3 bitrate 80kbps - 320kbps
WAV sample rate 16KHz - 48 KHz
WAV bitrate Up to 3000kbps
Bluetooth version4.2
Bluetooth profileA2DP V1.3, AVRCP V1.5
Bluetooth frequency range2402MHz-2480MHz
Bluetooth Max. transmitting power<10dBm (EIRP)
Modulation TypeGFSK, π/4 DQPSK, 8DPSK
5G Wireless frequency range5736.35 - 5820.35MHz
5G Max. transmitting power<9dBm (EIRP)
Modulation Typeπ/4 DQPSK
HDMI Video input1
HDMI Video output (With Audio return channel)1
HDMI version1.4
- Soundbar
- Wireless subwoofer

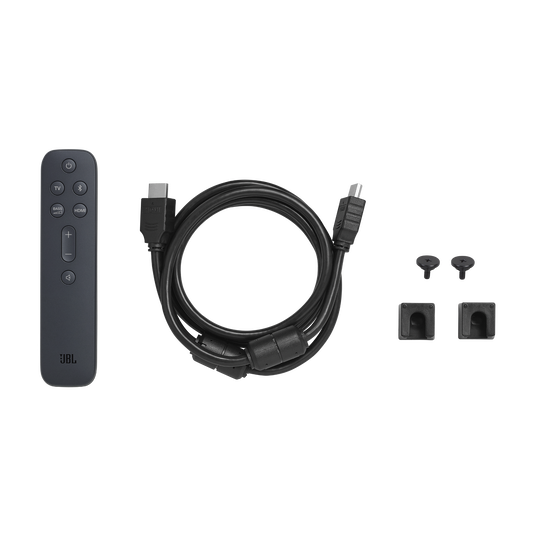

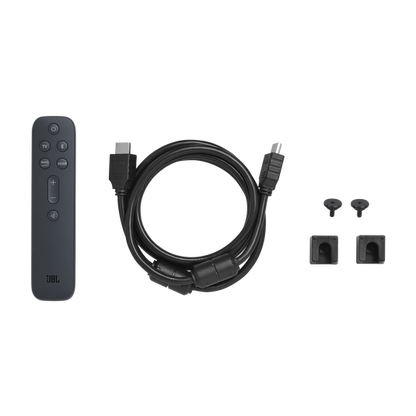

- Remote control with batteries
- Power cords (up to 8pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
