| Brand: |
MSI |
| Model Name: |

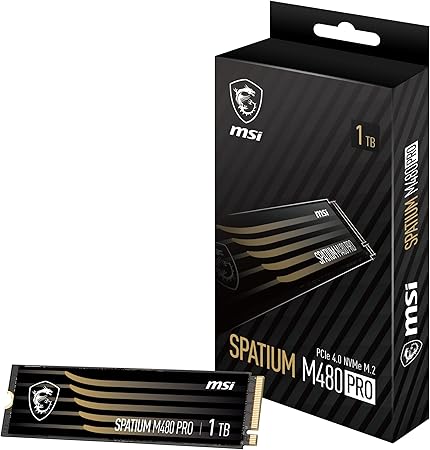

SPATIUM M480 PCIe 4.0 NVMe M.2 |
| Capacity: |
1TB |
| Controller: |
PHISON E18 |
| Flash Memory: |
3D NAND |
| DRAM Cache: |
1GB DDR4 |
| Form Factor: |
M.2 2280 |
| Interface: |
PCIe Gen4x4, NVMe 1.4 |
| Compatibility: |
PCIe Gen4 / Gen3 / Gen2 / Gen1 |
| Dimensions: |
80.00mm (L) x 22.00mm (W) x 2.15mm (H) |
| Sequential Read up to (MB/s): |
7000 |
| Sequential Write up to (MB/s): |
5500 |
| Random Read 4KB up to (IOPS): |
350,000 |
| Random Write 4KB up to (IOPS): |
700,000 |
| Maximum Operating Power (W): |
6.6 |
| Idle Power PS3 (mW): |
14 |
| Low Power L1.2 (mW): |
3 |
| Operating Temperatures: |
0°C – 70°C |
| Storage Temperatures: |
-40°C – 85°C |
| Terabytes Written (TBW): |
700 |
| Mean Time Between Failure (MTBF): |
Up to 1,600,000 Hours |
| Advanced Features: |
TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) AES256/Pyrite (Encryption, Data Security) |
