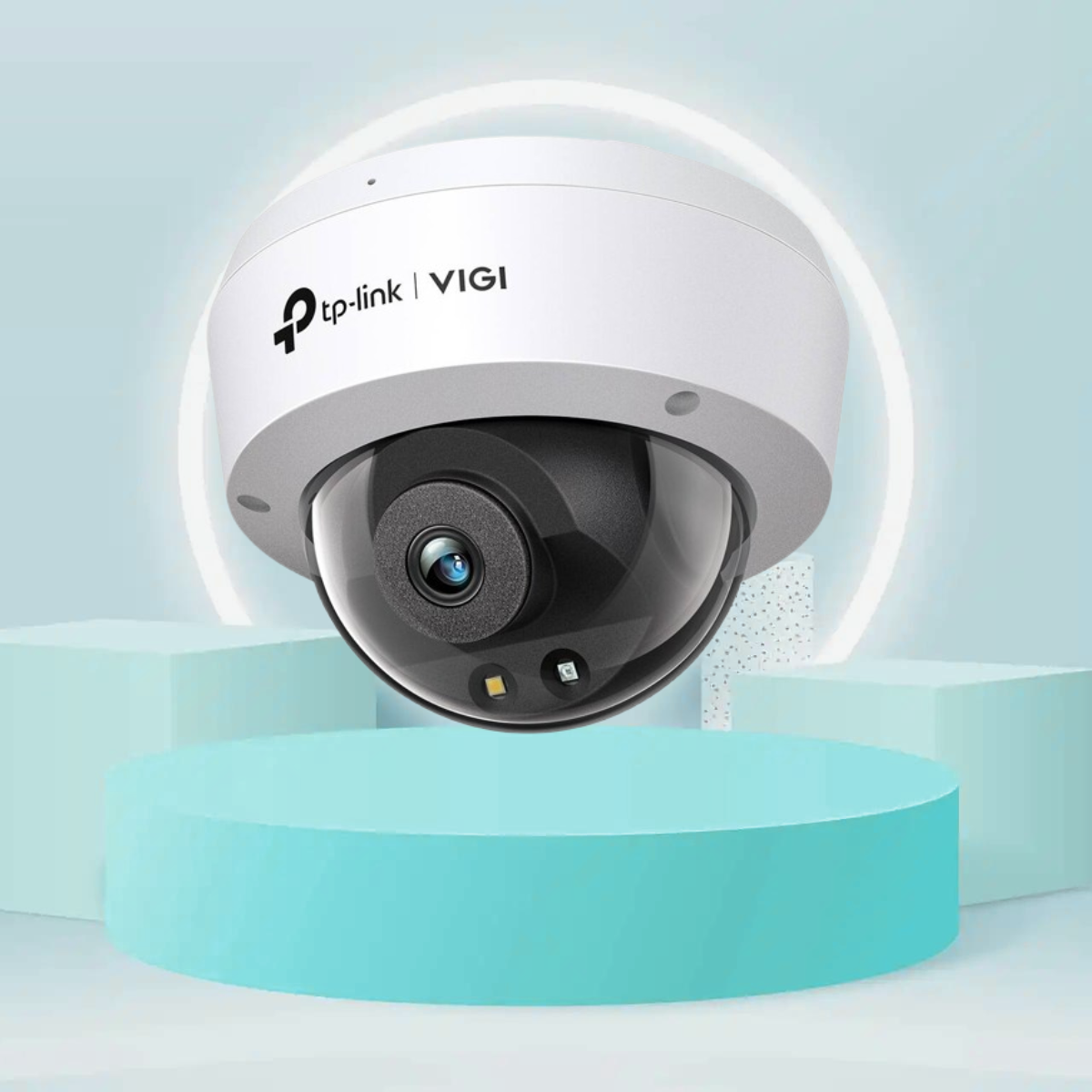

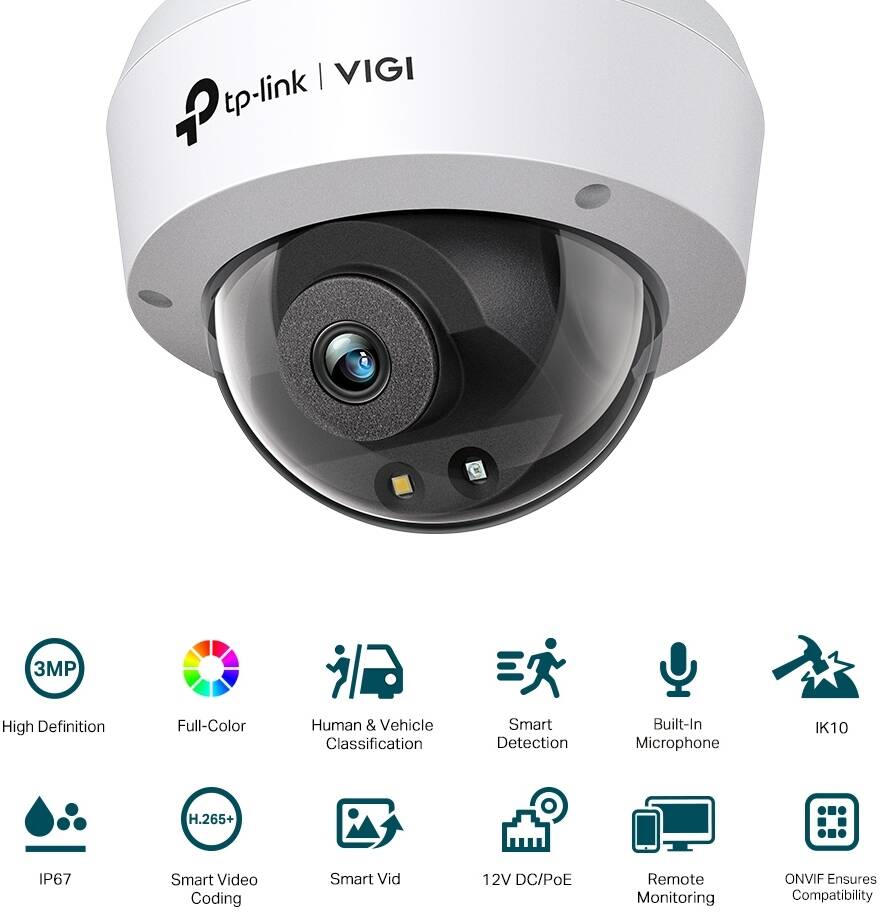

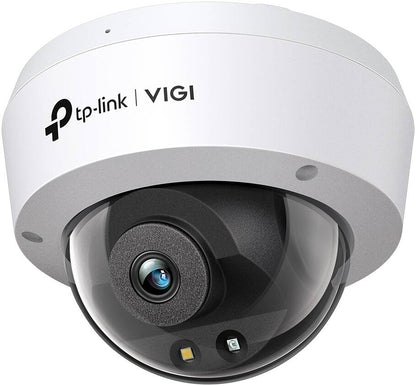

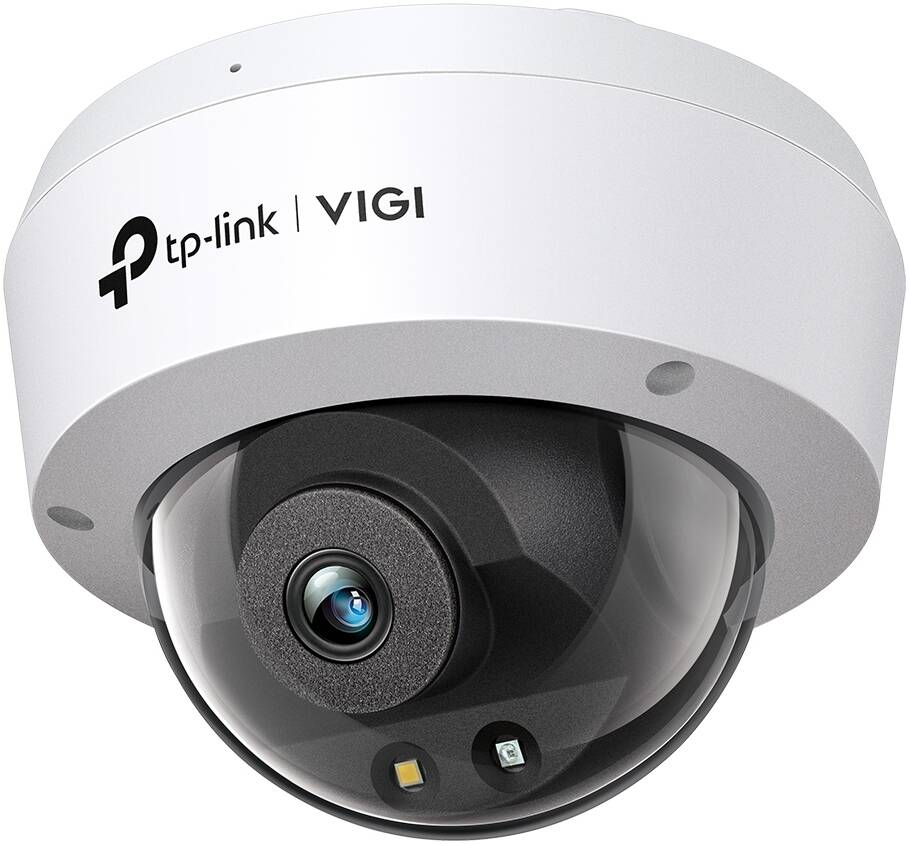

VIGI 3MP Full-Color Dome Network Camera, 4 mm Lens,VIGI C230-4mm

VIGI 3MP Full-Color Dome Network Camera, 4 mm Lens,VIGI C230-4mm

QAR 399,00
QAR 399,00
Sale Sold out

Specifications



CAMERA
Image Sensor 1/2.8” Progressive Scan CMOS
Lens 2.8 mm/4 mm
Day/Night Switch Unified/ Scheduled/ Auto
Digital Noise Reduction 3D DNR
WDR DWDR
Weatherproof Rating IP67
Pan/Tilt Range Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Shutter Speed 1/3 to 1/10000 s
Aperture
 		2.8 mm: F1.6
4 mm: F1.6
Lens Mount M12
Viewing Angle 2.8mm: Horizontal FOV: 107.5°, Vertical FOV:57.2°, Diagonal FOV: 128.7°
4mm: Horizontal FOV: 89.1°, Vertical FOV:45.1°, Diagonal FOV: 106.9°
Slow Shutter Yes

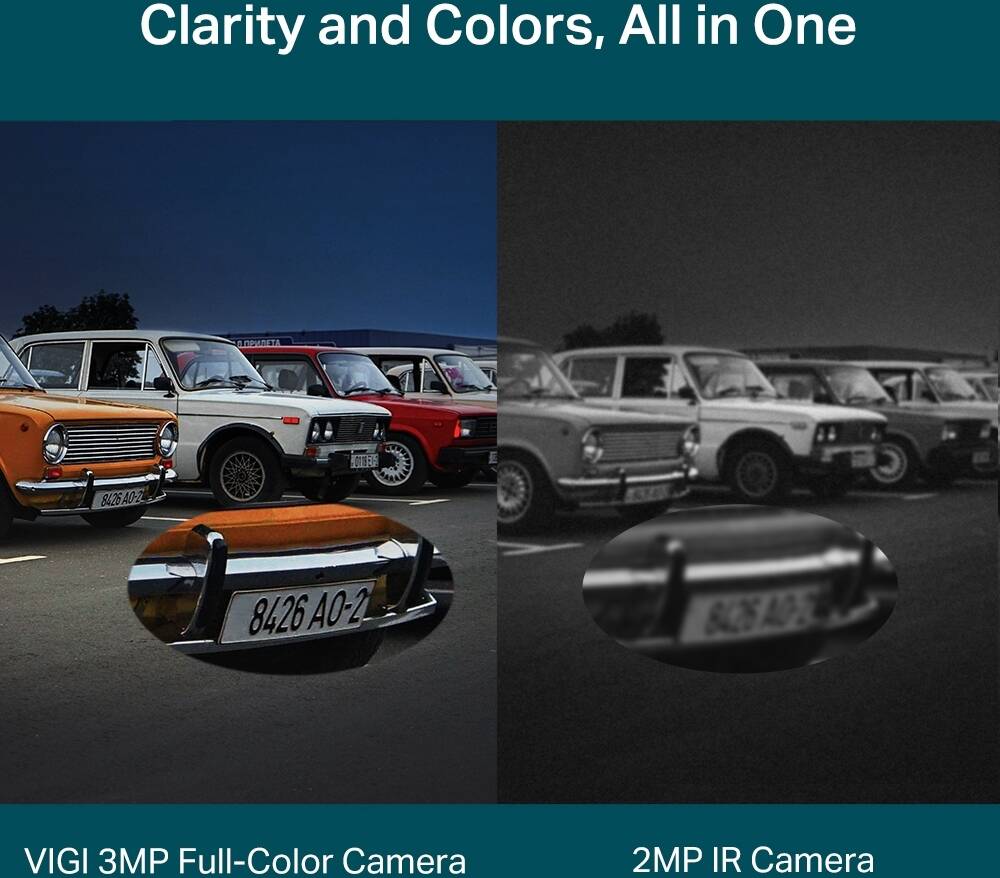

Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Dimensions( H X W X D ) 115 × 115 × 86 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight VIGI C230 (2.8mm): 0.2 Kg
VIGI C230(4mm): 0.28 Kg
Gross Weight VIGI C230 (2.8mm): 0.35 Kg
VIGI C230(4mm): 0.47 Kg
Power Consumption 12V DC: Max 4.7W
PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

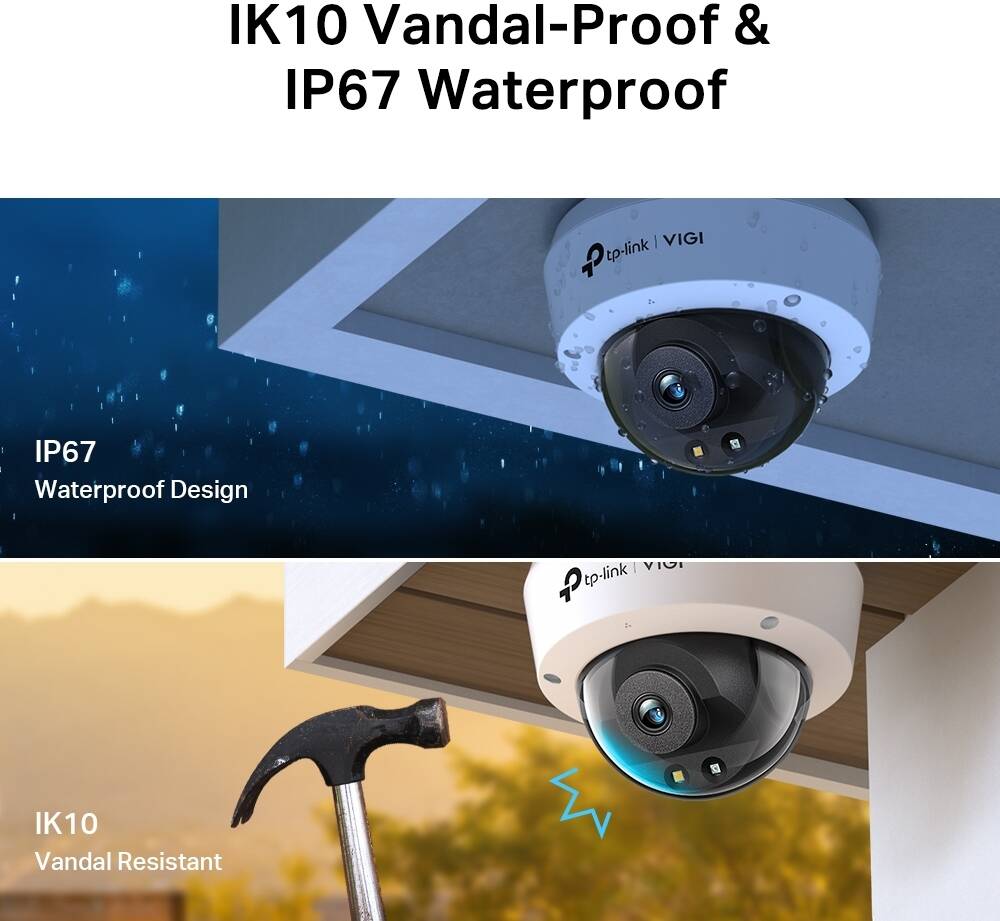

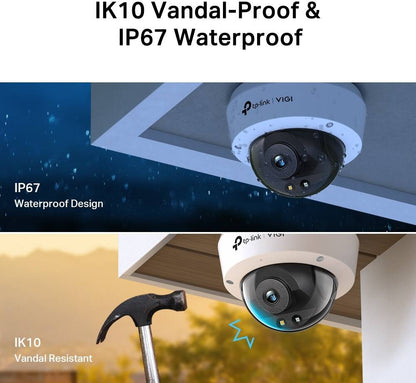

Vandal Resistant IK10
Protection IP67, IK10
Product Dimensions (L x W x H) 115× 86× 115 mm
Certifications CE/BSMI/VCCI/ONVIF
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Power DC Power Port

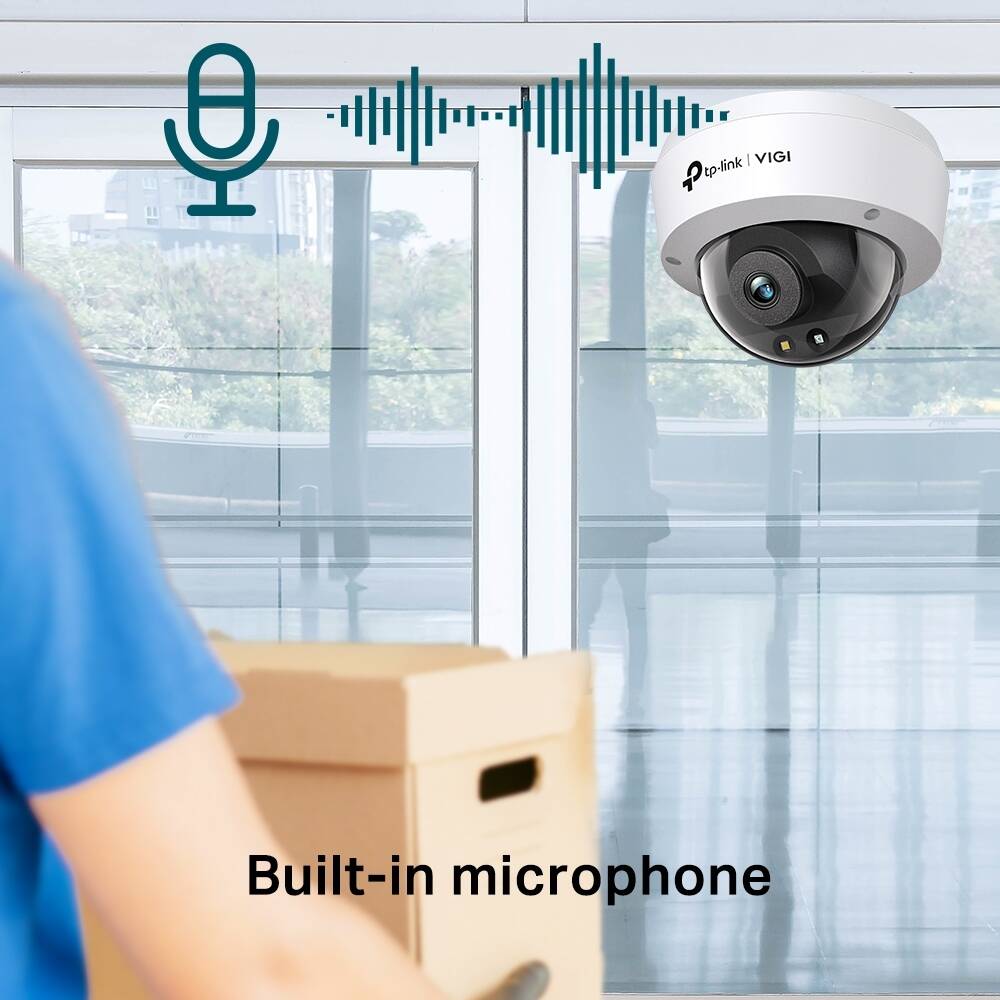

Built-in Microphone Yes
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage White Light Flashing, Message Push
Output Notification Message Push
VIDEO/IMAGE

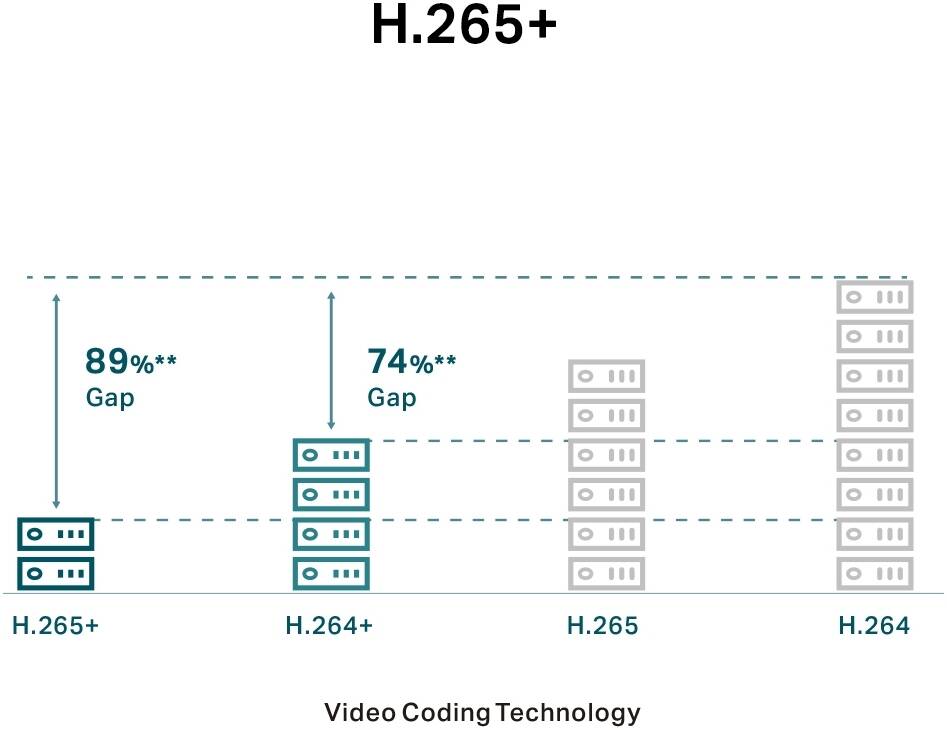

Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution 3MP (2304 × 1296)
Video Streaming Main Stream
Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

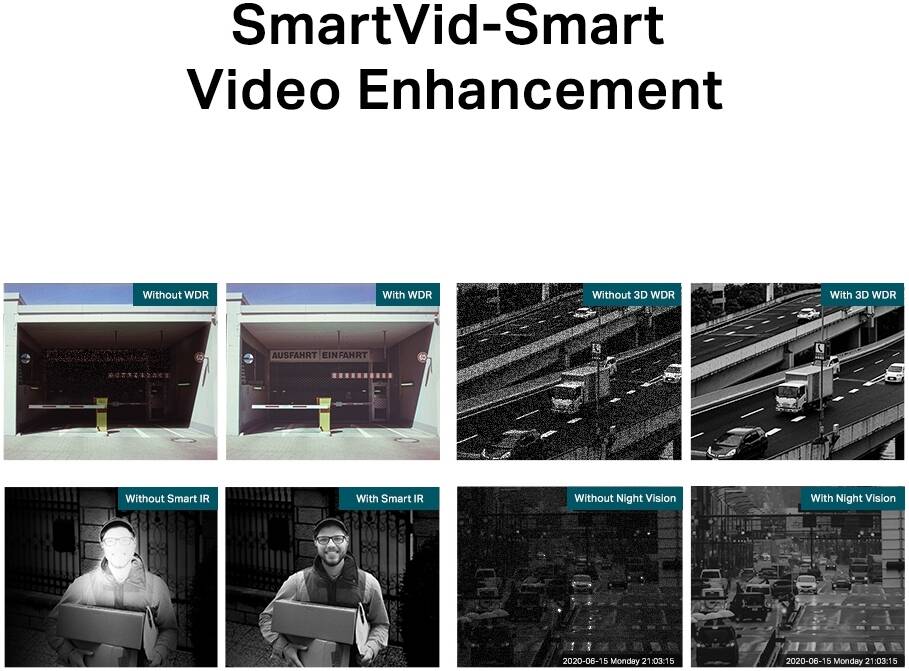

Image Enhancement BLC/3D DNR/HLC/SmartIR
Video Bit Rate 64 Kbps to 4 Mbps
Day/Night Switch Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
AUDIO
Audio Input Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
ILLUMINATOR
IR LED Quantity: 1
Range: 30m
Wavelength: 850nm
White LED Quantity: 1
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
LENS
Type Fixed Focal Lens
Focal Length 2.8 mm/4 mm
Aperture 2.8 mm: F1.6
4 mm: F1.6
FOV 2.8 mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°
4 mm: Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
Lens Mount M12
DORI Distance 2.8 mm:
Detect: 52 m (170 ft)
Observe: 22 m (71 ft)
Recognize: 10 m (34 ft)
Identify: 5 m (17 ft)
4 mm:
Detect: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)
ANGLE ADJUSTMENT (MANUAL)
Range Pan: 0° to 355°
Tilt: 0° to 75°
VIDEO
Max. Resolution 2304 × 1296
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Note:  If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
